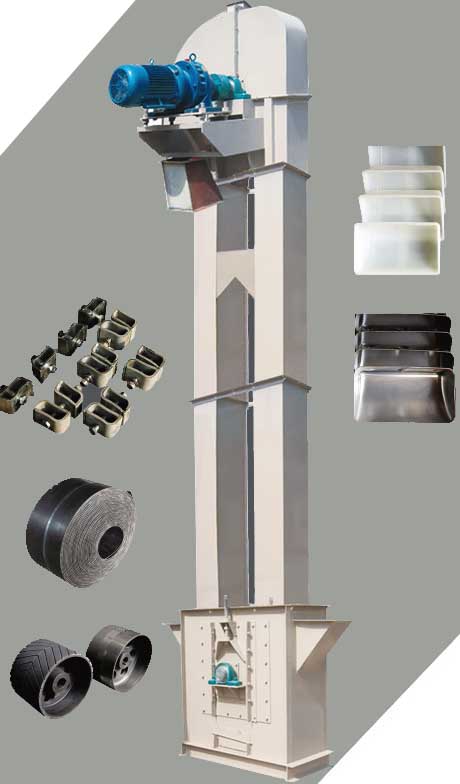

DTG series Bucket Elevator
The DTG series Bucket Elevator is suitable to continuously convey grain, maize, beans and other granular material which is non-corrosive and below 60℃. It is equipped with backstop device to prevent the material from dropping down to the bottom seat when the machine stopped suddenly because of the power failure or some faults else. The backstop device also can guarantee the safety when technicians check or repair the machine.
Technical data:
Model
Head wheel diameter
(mm)
Capacity
(ton/hour)
Linear speed of bucket
Bucket volume
(L)
Maximum elevating height
(m)
DTG36/23
230
20-30
2.0-2.5
According to the material
45
DTG36/28
280
30-40
2.0-2.5
45
DTG50/28
280
40-80
2.2-3.0
45
DTG50/32
320
60-100
2.2-3.0
45
DTG60/30
300
80-120
2.2-3.0
45
DTG60/33
330
120-160
2.2-4.0
45
DTG80/46
460
160-240
2.2-4.0
45
(m/s)
